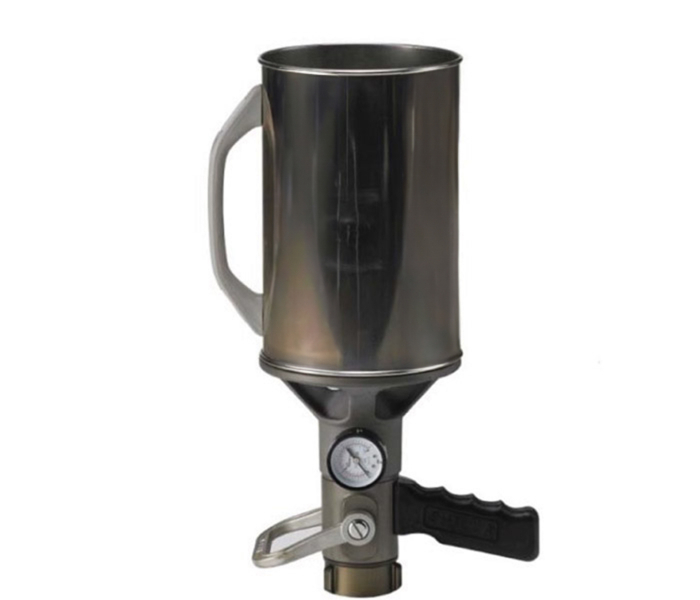

Medium Foam Expansion Nozzle
Hand line foam branch pipe is an air aspirated lightweight and portable type of equipment. It is used with low expansion foam concentrate and it can be used as a self-inducting unit.
NAFFCO’s hand line medium expansion foam pipe is a hand held nozzle used in all types of medium expansion foam systems. It is generally used where the foam is required to be applied manually. The branch pipe is used to protecting loading racks, tank farms, chemical plants, spillfires, etc.
- Fast Coverage.
- Designed to be used on any foam proportioning system.
- Ensures the delivery of high volume of stable foam.
- Ideally suited for tank farm bund protection
- Maintenance free.
|
Model |
NFB-25 & NFB-40 |
|
Inlet |
1½" or 2½" NH swivel female or BS 336 |
|
Flow |
250 LPM @ 7 bar(1½") 400 LPM @ 7 bar(2½") |
|
Foam discharge |
AFFF 3% |
|
Material |
Stainless steel foam water way Aluminum connection part, stainless steel screen inside |
|
Length |
Approx. 490 mm-NFB-25 Approx. 760 mm-NFB-40 |
|
Net weight |
3.5 kg-NFB-25 6.7 kg-NFB-40 |
|
Effective Reach |
5-7 m @ 45° in Jet |
|
