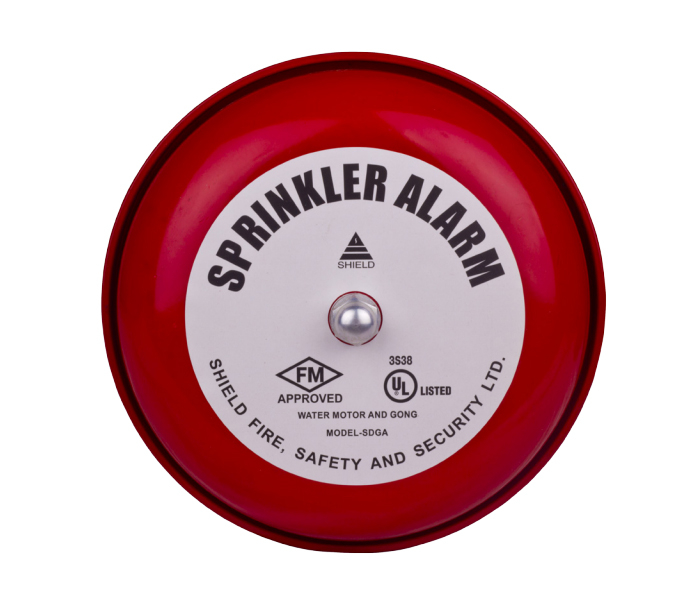

Sprinkler Alarm
SHIELD Sprinkler Alarm is a hydraulically driven mechanical bell. It does sound a continuous alarm when the sprinkler system operates. The impeller and drive shaft are energy efficient, made from light weight nonmetallic material and do not require any external lubrication. The gong, protection cover and motor housing are made of corrosion resistant aluminium alloy.
Sprinkler Alarm with mounting Type-B is wall mounting type. Type-B is suitable for 50 to 250 mm thick wall and curves with 325 mm long drive shaft as standard supply. For wall thickness 250 to 450 mm or longer a special extension drive shaft can be supplied on request.
Contact Us to Purchase
Specifications
| MOUNTING TYPE | Type - A & Type - B |
| WATER WORKING | 17.5 Bar (250 PSI) PRESSURE |
| CONNECTION | Inlet: 3/4” BSPT (3/4” NPT); Drain: 1” BSPT (1” NPT) |
| GONG DIAMETER | 205mm (8”) |
| GOING DEPTH | 50mm (2”) |
| FINISH | Red RAL 3000 |
| WEIGHT | 3 Kg. |
| ORDERING INFORMATION | Mounting Type |
